Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
DK015LTP RECT 1000V 15A TO220 ISO Littelfuse Inc.	3,630	-	RFQ	Datasheet	Tube	Teccor®	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	4 µs	20 µA @ 1000 V	1000 V	9.5A	-40°C ~ 125°C	1.6 V @ 15 A
D8010LTP RECT 800V 10A TO220 ISO Littelfuse Inc.	2,354	-	RFQ		Tube	Teccor®	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	4 µs	20 µA @ 800 V	800 V	10A	-40°C ~ 125°C	1.6 V @ 10 A
D8015LTP RECT 800V 15A TO220 ISO Littelfuse Inc.	3,998	-	RFQ	Datasheet	Tube		RoHS	-	-	Active	-	-	-	-	-	-	-	-
DSTF30100S DIODE SCHOTTKY 30A 100V ITO220AB Littelfuse Inc.	2,179	-	RFQ	Datasheet	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	1 µA @ 100 V	100 V	30A	-55°C ~ 150°C	900 mV @ 30 A
LSIC2SD170B50 DIODE SIC SCHOTTKY 1700V 50A Littelfuse Inc.	519	-	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	3900pF @ 1V, 1MHz	0 ns	100 µA @ 1700 V	1700 V	135A (DC)	-55°C ~ 175°C	1.8 V @ 50 A

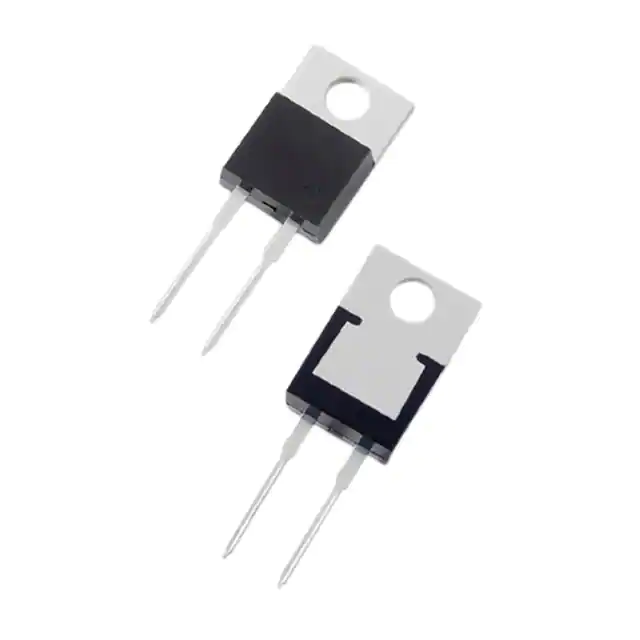

MBR1045 DIODE SCHOTTKY 10A 45V TO220AC Littelfuse Inc.	2,666	-	RFQ	Datasheet	Tube	MBR	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	400pF @ 5V, 1MHz	-	1 mA @ 45 V	45 V	10A	-55°C ~ 150°C	650 mV @ 10 A

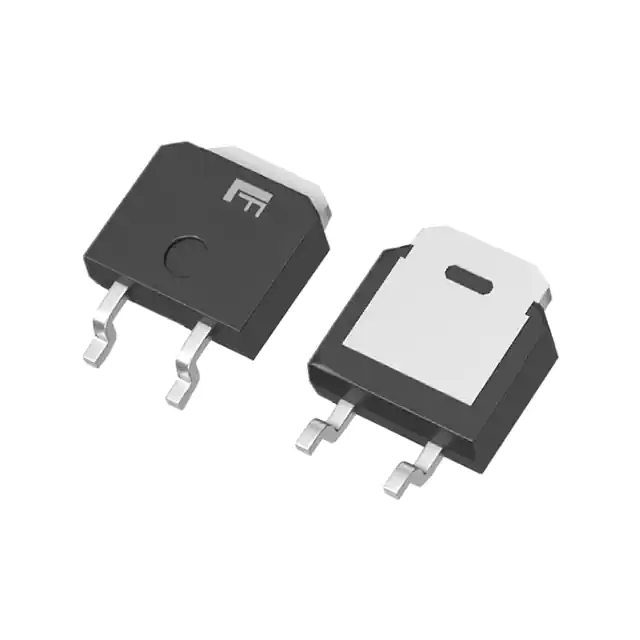

LSIC2SD065C10A SIC SCHOTTKY DIOD 650V 10A TO252 Littelfuse Inc.	2,039	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Gen2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	470pF @ 1V, 1MHz	0 ns	50 µA @ 650 V	650 V	27A (DC)	-55°C ~ 175°C	1.8 V @ 10 A
MBR40100WT DIODE SCHOTTKY 20A 100V TO247AD Littelfuse Inc.	199	-	RFQ	Datasheet	Tube	MBR	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	400pF @ 5V, 1MHz	-	1 mA @ 100 V	100 V	20A	-55°C ~ 150°C	880 mV @ 20 A
LFUSCD08065A DIODE SIC SCHOTTKY 650V 8A TO220 Littelfuse Inc.	500	-	RFQ	Datasheet	Tube,Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	260pF @ 1V, 1MHz	0 ns	230 µA @ 650 V	650 V	8A (DC)	175°C (Max)	1.7 V @ 8 A
DST860S-A DIODE SCHOTTKY 60V 8A TO277B Littelfuse Inc.	2,693	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	502pF @ 5V, 1MHz	-	600 µA @ 60 V	60 V	8A	-55°C ~ 150°C	610 mV @ 8 A
DURF1060 DIODE GEN PURP 600V 10A ITO220AC Littelfuse Inc.	3,665	-	RFQ	Datasheet	Tube	DUR	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	32 ns	10 µA @ 600 V	600 V	10A	-55°C ~ 150°C	2.2 V @ 10 A
DST580S-A DIODE SCHOTTKY 5A 80V TO277B Littelfuse Inc.	2,904	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	245pF @ 5V, 1MHz	-	400 µA @ 80 V	80 V	5A	-55°C ~ 150°C	720 mV @ 5 A
DST10100S-A DIODE SCHOTTKY 100V 10A TO277B Littelfuse Inc.	2,755	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	250 µA @ 100 V	100 V	10A	-55°C ~ 150°C	700 mV @ 10 A
DST1545S DIODE SCHOTTKY 15A 45V TO277B Littelfuse Inc.	2,207	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	868pF @ 5V, 1MHz	-	1.5 mA @ 45 V	45 V	15A	-55°C ~ 150°C	580 mV @ 15 A
DK025LTP RECT 1000V 25A TO220 ISO Littelfuse Inc.	2,901	-	RFQ	Datasheet	Tube	Teccor®	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	4 µs	20 µA @ 1000 V	1000 V	15.9A	-40°C ~ 125°C	1.6 V @ 25 A

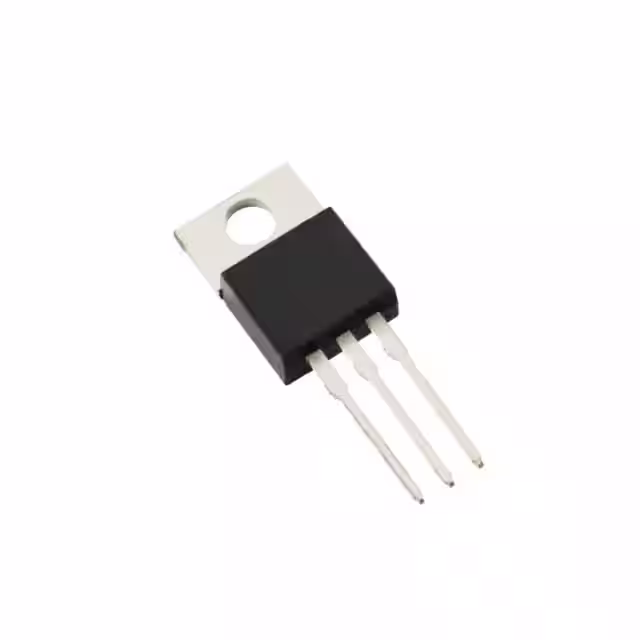

D6025LCTP RECTIFIER 600V 25AMP TO-220L Littelfuse Inc.	3,455	-	RFQ		Tube	Dxx25L	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	4 µs	10 µA @ 600 V	600 V	15.9A	-40°C ~ 125°C	1.6 V @ 15 A
LSIC2SD065C20A SIC SCHOTTKY DIOD 650V 20A TO252 Littelfuse Inc.	3,327	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Gen2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	960pF @ 1V, 1MHz	0 ns	50 µA @ 650 V	650 V	45A (DC)	-55°C ~ 175°C	1.8 V @ 20 A
D8025LTP DIODE GEN PURP 800V 15.9A TO220 Littelfuse Inc.	3,614	-	RFQ	Datasheet	Tube		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	4 µs	20 µA @ 800 V	800 V	15.9A	-40°C ~ 125°C	-
DST5100S DIODE SCHOTTKY 100V 5A TO277B Littelfuse Inc.	3,205	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	245pF @ 5V, 1MHz	-	120 µA @ 100 V	100 V	5A	-55°C ~ 150°C	750 mV @ 5 A
DST8100S DIODE SCHOTTKY 8A 100V TO277B Littelfuse Inc.	3,898	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	542pF @ 5V, 1MHz	-	70 µA @ 100 V	100 V	8A	-55°C ~ 150°C	680 mV @ 8 A
