Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
VLA542-11R IC GATE DRVR PWR MGMT MOSFET Powerex Inc.	3,584	-	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Single	1	IGBT	14V ~ 17V	-	5A, 5A	CMOS	-	400ns, 300ns	-20°C ~ 70°C	Through Hole
VLA500-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	738	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14.2V ~ 15.8V	-	12A, 12A	Non-Inverting	-	300ns, 300ns	-20°C ~ 60°C (TA)	Through Hole
VLA591-01R IC GATE DRVR DIP-GAM Powerex Inc.	2,873	-	RFQ	Datasheet	Tray	-	Active	Full-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	Non-Inverting	-	520ns, 120ns	-40°C ~ 85°C	Through Hole
M57962L-71R-02 IC GATE DRVR PWR MGMT MOSFET Powerex Inc.	2,841	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	600ns, 400ns	-20°C ~ 60°C	Through Hole
VLA502-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	3,524	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14.2V ~ 15.8V	-	12A, 12A	Non-Inverting	-	300ns, 300ns	-20°C ~ 60°C (TA)	Through Hole

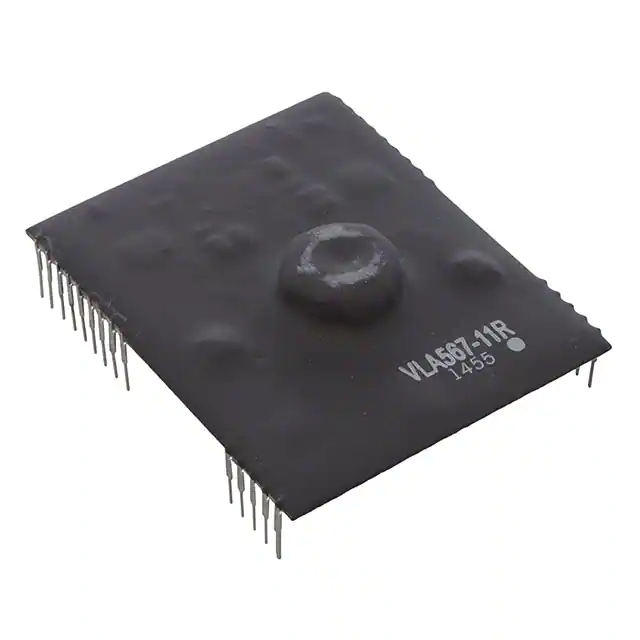

VLA567-11R PWR MGMT MOSFET/PWR DRIVER Powerex Inc.	2,630	-	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Independent	2	IGBT	14.2V ~ 15.8V	-	-	Non-Inverting	-	400ns, 300ns	-20°C ~ 70°C (TA)	Through Hole
VLA507-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	2,004	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14V ~ 15V	-	3A, 3A	Non-Inverting	-	300ns, 300ns	-20°C ~ 70°C (TA)	Through Hole
VLA531-01R IC GATE DRVR IGBT Powerex Inc.	3,680	-	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	Through Hole
VLA513-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	2,787	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	300ns, 300ns	-20°C ~ 70°C (TA)	Through Hole
VLA546-01R IC GATE DRVR LOW-SIDE Powerex Inc.	3,727	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14V ~ 17V	-	-	TTL	-	300ns, 300ns	-20°C ~ 85°C	Through Hole
VLA541-01R IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	2,555	-	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Single	1	IGBT	14V ~ 17V	-	3A, 3A	Non-Inverting	-	300ns, 300ns	-20°C ~ 70°C (TA)	Through Hole
VLA500K-01R IC GATE DRVR LOW-SIDE 21SIP Powerex Inc.	2,630	-	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14.2V ~ 15.8V	-	12A, 12A	Non-Inverting	-	300ns, 300ns	-20°C ~ 60°C (TA)	Through Hole
VLA553-01R IC GATE DRVR HALF-BRIDGE OCTAPAK Powerex Inc.	3,308	-	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Independent	2	IGBT	14.2V ~ 15.8V	-	24A, 24A	Non-Inverting	-	-	-25°C ~ 70°C (TA)	Chassis Mount
VLA553-02R IC GATE DRVR HALF-BRIDGE MODULE Powerex Inc.	2,680	-	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Independent	2	IGBT	14.2V ~ 15.8V	-	24A, 24A	Non-Inverting	-	-	-25°C ~ 70°C (TA)	Chassis Mount
M57962L-71R-02 M57962L-71R-02 Powerex Inc.	3,817	-	RFQ	Datasheet	Box	-	Active	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	600ns, 400ns	-20°C ~ 60°C (TA)	Through Hole

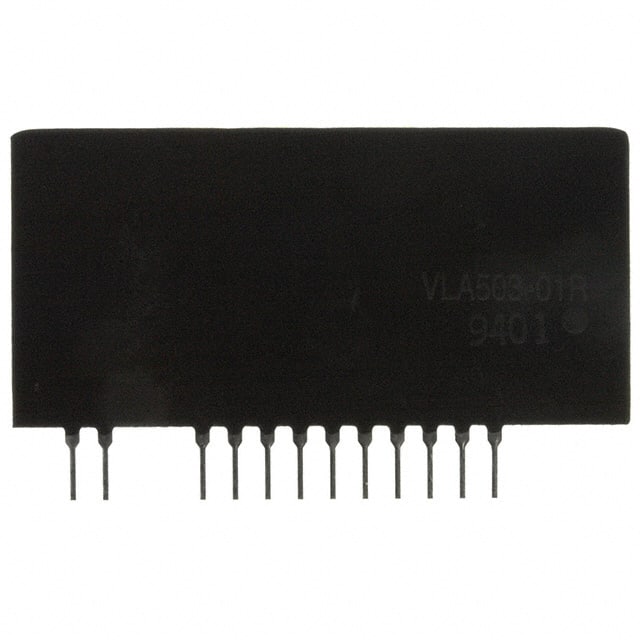

VLA503-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	2,141	-	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	300ns, 300ns	-20°C ~ 60°C (TA)	Through Hole
M57160AL-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	3,782	-	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	500ns, 400ns	-20°C ~ 60°C (TA)	Through Hole
M57161L-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	2,484	-	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Single	1	IGBT	14.3V ~ 15.7V	-	7A, 7A	Non-Inverting	-	400ns, 400ns	-20°C ~ 60°C (TA)	Through Hole
M57959L IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	3,076	-	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Single	1	IGBT	14V ~ 15V	-	2A, 2A	Non-Inverting	-	500ns, 300ns	-20°C ~ 60°C (TA)	Through Hole
M57962CL-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	3,925	-	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	600ns, 400ns	-20°C ~ 60°C (TA)	Through Hole
