Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CouplerType	Frequency	CouplingFactor	Applications	InsertionLoss	Power-Max	Isolation	ReturnLoss
DBTC-9-4L+ RF DIR COUPLER 5MHZ-1GHZ 5SMD Mini-Circuits	3,995	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	5MHz ~ 1GHz	9 ± 0.5dB	Cellular	-	500mW	-	32.7dB
DBTC-17-5LX+ RF DIR COUPLER 50MHZ-2GHZ 5SMD Mini-Circuits	2,713	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	50MHz ~ 2GHz	17.2 ± 0.9dB	Cellular, PCS	-	2W	-	28.07dB
DCW-9-432+ 9 DB SMT DIRECTIONAL COUPLER, 23 Mini-Circuits	3,581	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	2.3GHz ~ 4.3GHz	9dB	General Purpose	-	-	-	-
DCW-22-332+ RF DIR CPLR 1.2GHZ-3.3GHZ 0603 Mini-Circuits	3,767	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	1.2GHz ~ 3.3GHz	22 ± 2dB	PCS, LTE, ISM, UMTS, WiMAX, Wi-Fi	-	2W	-	23dB
DCW-30-272+ RF DIR CPLR 700MHZ-2.7GHZ 0603 Mini-Circuits	2,089	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	700MHz ~ 2.7GHz	30 ± 1.5dB	PCS	-	2W	-	23dB

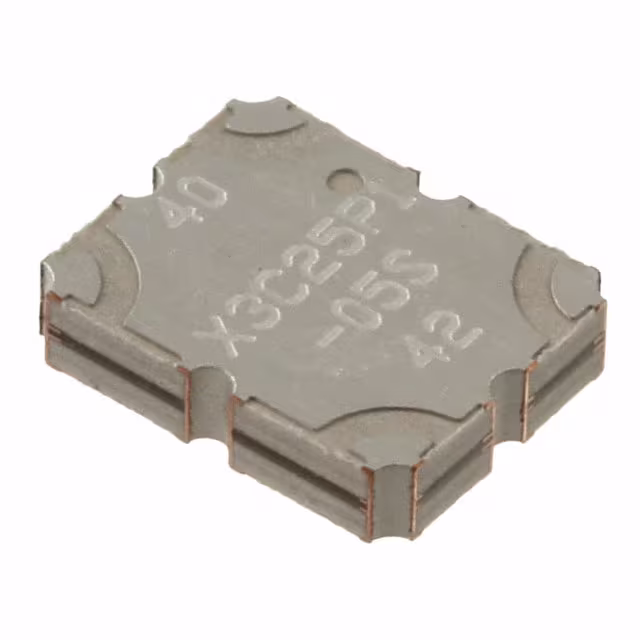

X3C25P1-05S RF DIR COUPLER 2.3GHZ-2.7GHZ SMD TTM Technologies, Inc.	3,145	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2.3GHz ~ 2.7GHz	5dB	General Purpose	0.18dB	60W	-	-

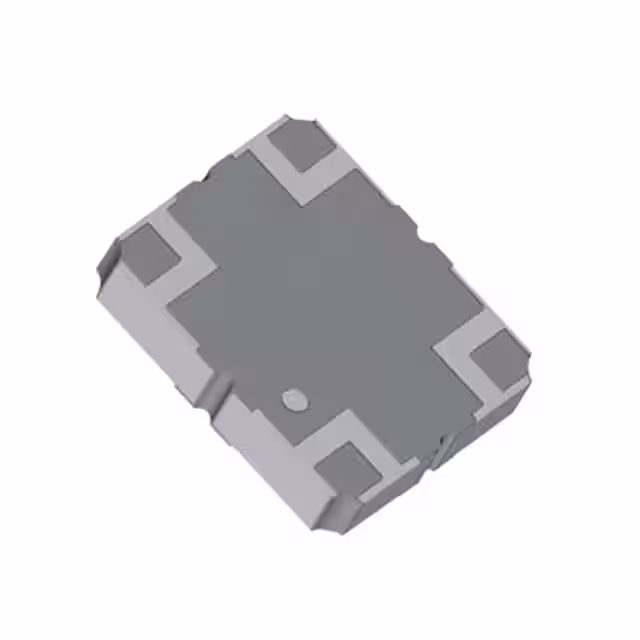

X3C21P1-05S RF DIR COUPLER 2GHZ-2.3GHZ SMD TTM Technologies, Inc.	546	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2GHz ~ 2.3GHz	5dB	General Purpose	0.15dB	60W	-	-
MACPCC0001-TR TAPE AND REEL FOR MACPCC0001(COU MACOM Technology Solutions	3,458	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	1.7GHz ~ 2GHz	17 ± 2dB	General Purpose	0.3dB	2W	-	-
BDCN-20-13+ RF DIR COUPLER 360MHZ-1GHZ 6SMD Mini-Circuits	3,856	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	360MHz ~ 1GHz	24dB	General Purpose	-	16W	-	35dB
X3C26P1-30S RF DIR COUPLER 2.3GHZ-2.9GHZ SMD TTM Technologies, Inc.	2,904	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2.3GHz ~ 2.9GHz	30dB	LTE, WiMAX	0.1dB	200W	-	24.9dB
X3C09E2-20S RF DIR COUPLER 800MHZ-1GHZ 4SMD TTM Technologies, Inc.	2,955	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	800MHz ~ 1GHz	20dB	AMPS, CDMA, WCDMA	0.075dB	225W	-	20dB
X3C70F1-20S IC DIR COUPLR 5.5-8.5GHZ 20DB TTM Technologies, Inc.	2,062	-	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	5.5GHz ~ 8.5GHz	20 ± 1.5dB	General Purpose	0.25dB	20W	-	30dB

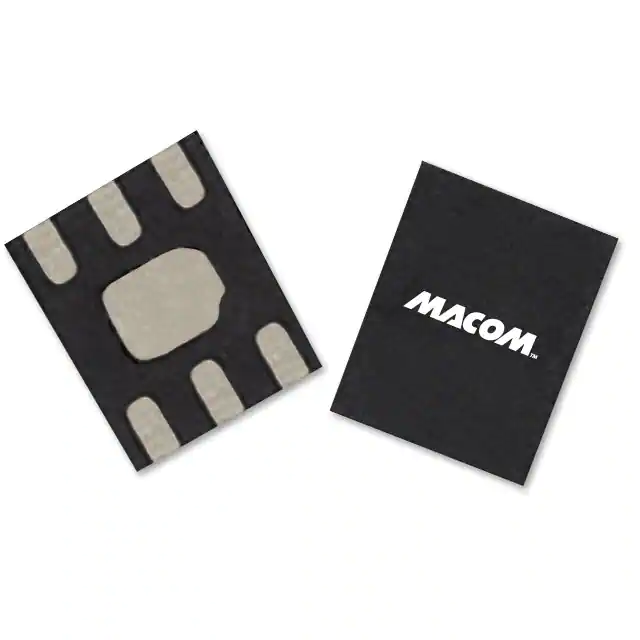

MACP-010571-TR1000 RMS POWER DETECTOR 2-6 GHZ MACOM Technology Solutions	988	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	2GHz ~ 6GHz	-	General Purpose	0.26dB	30dBm	-	30dB
XC1500A-20S RF DIR COUPLER 1GHZ-2GHZ SMD TTM Technologies, Inc.	3,445	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger II®	Active	Standard	1GHz ~ 2GHz	20dB	General Purpose	0.19dB	160W	-	-
ADC-20-4+ RF DIR COUPLER 5MHZ-1GHZ 6SMD Mini-Circuits	988	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	5MHz ~ 1GHz	20 ± 0.5dB	General Purpose	-	1W	-	36.64dB
ADC-20-12+ RF DIR CPLR 100MHZ-1.2GHZ 6SMD Mini-Circuits	859	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	100MHz ~ 1.2GHz	20 ± 0.75dB	General Purpose	-	1W	-	30.72dB
MACPCC0002 COUPLER,PB-EQUIVILENT OF CH20-00 MACOM Technology Solutions	500	-	RFQ	Datasheet	Bulk	-	Active	Standard	824MHz ~ 960MHz	17 ± 2dB	General Purpose	0.3dB	2W	-	-
MACPCC0001 COUPLER,DIRECTIONAL, 17 DB MACOM Technology Solutions	480	-	RFQ	Datasheet	Tube	-	Active	Standard	1.7GHz ~ 2GHz	17 ± 2dB	General Purpose	0.3dB	2W	-	-
RBDC-20-63+ 20 DB SMT RF TAP COUPLER, DC Mini-Circuits	496	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	0Hz ~ 6GHz	20dB	LTE, PCS, WiMAX	1.1dB	-	-	20dB
ADC-10-1R+ RF DIR COUPLER 5MHZ-900MHZ 6SMD Mini-Circuits	966	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	5MHz ~ 900MHz	10.5 ± 0.5dB	General Purpose	-	1W	-	33.86dB
