Transistors - IGBTs - Modules- Page 41

MAX3232IDR BT1433 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FF750R17ME7DB11BPSA1 MEDIUM POWER ECONO Infineon Technologies	2,627	-	RFQ	Datasheet	Tray	EconoDUAL™ 3	Active	Trench Field Stop	Half Bridge Inverter	1700 V	750 A	20 mW	1.85V @ 15V, 750A	5 mA	78.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FF900R17ME7B11BPSA1 MEDIUM POWER ECONO Infineon Technologies	2,497	-	RFQ	Datasheet	Tray	EconoDUAL™ 3	Active	Trench Field Stop	2 Independent	1700 V	900 A	20 mW	1.85V @ 15V, 900A	5 mA	93.8 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP75R12N3T4B80BPSA1 LOW POWER ECONO AG-ECONO3-386 Infineon Technologies	3,607	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
F4100R17N3E4B80BPSA1 LOW POWER ECONO AG-ECONO3-586 Infineon Technologies	2,154	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP100R12N3T4B80BPSA1 LOW POWER ECONO AG-ECONO3-386 Infineon Technologies	3,949	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

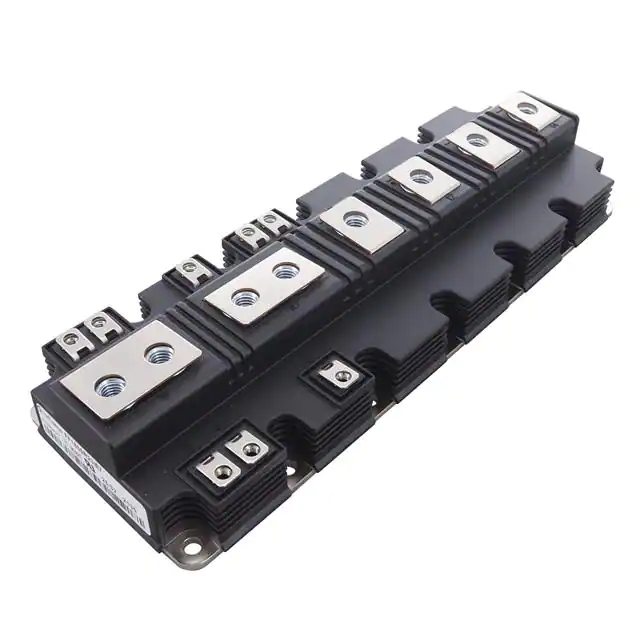

FF1800R23IE7BPSA1 PP IHM I XHP 1 7KV AG-PRIME3+-7 Infineon Technologies	3,285	-	RFQ		Tray	PrimePACK™3	Active	-	2 Independent	1500 V	1800 A	-	-	-	-	Standard	No	-	Chassis Mount

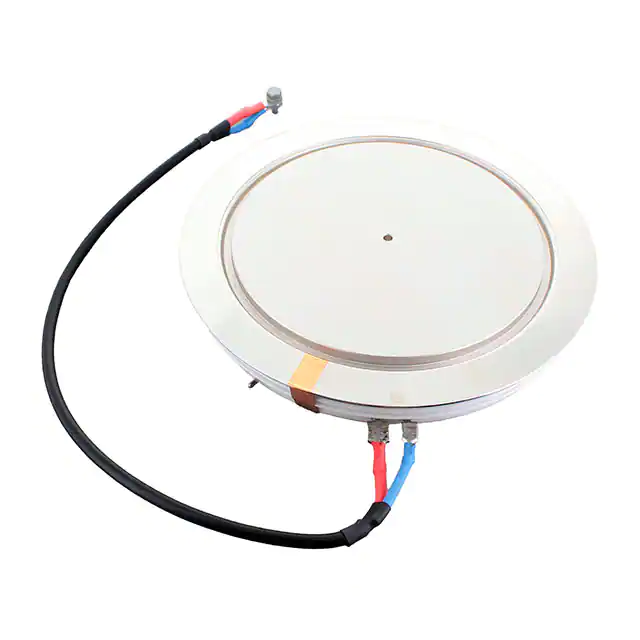

P2000DL45X168HPSA1 PRESS PACK IGBT Infineon Technologies	3,948	-	RFQ	Datasheet	Tray	-	Active	Trench	Single	4500 V	2000 A	-	2.5V @ 15V, 2000A	200 µA	420 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
P3000ZL45X168HPSA1 PRESS PACK IGBT Infineon Technologies	3,844	-	RFQ	Datasheet	Tray	-	Active	Trench	Single	4500 V	3000 A	-	2.5V @ 15V, 3000A	200 µA	620 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

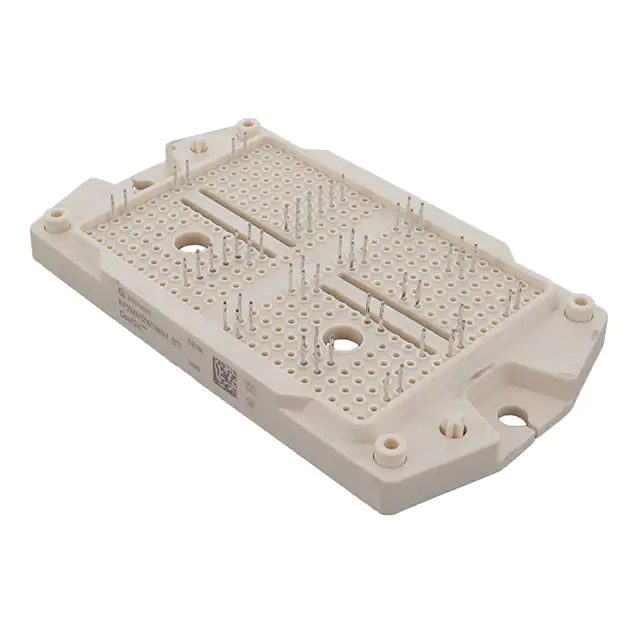

FF2MR12W3M1HB11BPSA1 LOW POWER EASY AG-EASY3B-3111 Infineon Technologies	2,577	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FZ1600R17KF6CB2S1NOSA1 IGBT MODULE Infineon Technologies	3,377	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single Switch	1700 V	1600 A	10500 W	2.25V @ 15V, 1.6kA	5 mA	130 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FZ1600R33HE4BPSA1 IHV IHM T XHP 3 3-6 5K AG-IHVB13 Infineon Technologies	3,028	-	RFQ	Datasheet	Tray	IHM-B	Active	Trench Field Stop	2 Independent	3300 V	1.6 kA	3600 W	2.65V @ 15V, 1.6kA	5 mA	187 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
AIM5C05B060NH IGBT MODULE IPM 3 PHASE Alpha & Omega Semiconductor Inc.	3,411	-	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
IX526119 ITF40PF1200DHGTLB-TRR IXYS	3,971	-	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
IX526112 ITF40PF1200DHGTLB-TUB IXYS	3,622	-	RFQ		Tube	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS10R06VE3BOMA1 IGBT MODULE 600V 16A 50W Infineon Technologies	2,195	-	RFQ	Datasheet	Bulk	-	Last Time Buy	-	Three Phase Inverter	600 V	16 A	50 W	2V @ 15V, 10A	1 mA	550 pF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FS10R06VE3B2BOMA1 IGBT MODULE 600V 16A 50W Infineon Technologies	2,111	-	RFQ	Datasheet	Bulk,Bulk	-	Not For New Designs	-	Three Phase Inverter	600 V	16 A	50 W	2V @ 15V, 10A	1 mA	550 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
VS-GT80DA60U IGBT MOD 600V 123A 454W SOT227 Vishay General Semiconductor - Diodes Division	3,969	-	RFQ	Datasheet	Bulk	FRED Pt®	Active	Trench Field Stop	Single Switch	600 V	123 A	454 W	2.45V @ 15V, 80A	100 µA	10.8 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
FS15R06VE3B2BOMA1 IGBT MODULE 600V 22A 65W Infineon Technologies	3,514	-	RFQ	Datasheet	Bulk,Bulk	-	Not For New Designs	-	Three Phase Inverter	600 V	22 A	65 W	2V @ 15V, 15A	1 mA	830 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS10R12VT3BOMA1 IGBT MODULE 1200V 16A 64W Infineon Technologies	160	-	RFQ	Datasheet	Bulk,Bulk	-	Last Time Buy	-	Three Phase Inverter	1200 V	16 A	64 W	2.45V @ 15V, 10A	1 mA	700 pF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
APT40GL120JU3 IGBT MOD 1200V 65A 220W SOT227 Microchip Technology	3,662	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1200 V	65 A	220 W	2.25V @ 15V, 35A	250 µA	1.95 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis, Stud Mount
