Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature
IWAS3827ABEB100JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	2,454	-	RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	178mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C

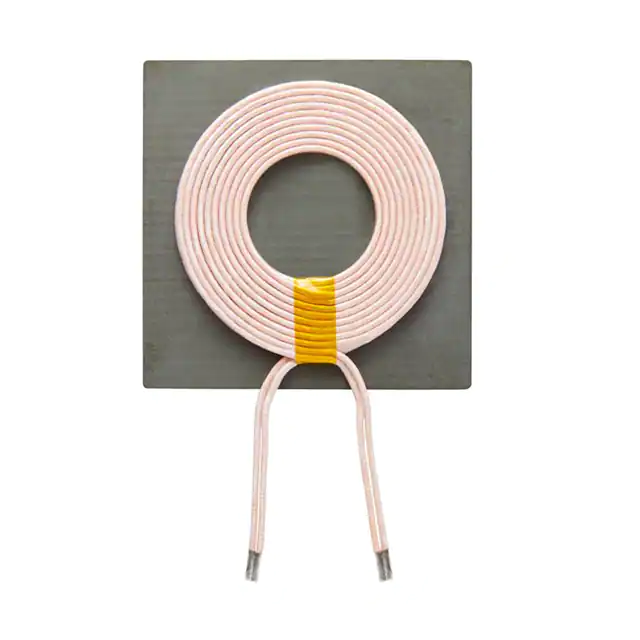

WTSQ-6R3K-A11 SINGLE-COIL SQUARE BASE WIRELESS Signal Transformer	3,353	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	2 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	-	9A	10A	-	-20°C ~ 85°C
AWCCA-RX483205-103 WIRELESS CHARGING COIL Abracon LLC	3,402	-	RFQ	Datasheet	Tray	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	14.5µH	±10%	140mOhm	60 @ 100kHz	-	-	-	-25°C ~ 85°C
IWTX5050FEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	2,953	-	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C
IWTX5050DEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	2,560	-	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C
AWCCA-RX514012-F003 WIRELESS CHARGING COIL Abracon LLC	3,942	-	RFQ	Datasheet	Tray	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	8.5µH	±10%	160mOhm	25 @ 125kHz	-	-	-	-25°C ~ 85°C
AWCCA-RX404012-102 WIRELESS CHARGING COIL Abracon LLC	2,029	-	RFQ	Datasheet	Tray	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	8µH	±10%	80mOhm	30 @ 125kHz	-	-	-	-25°C ~ 85°C
AWCCA-RX300200-102 WIRELESS CHARGING COIL Abracon LLC	2,319	-	RFQ	Datasheet	Tray	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	6.3µH	±10%	140mOhm	26 @ 100kHz	-	-	-	-25°C ~ 85°C
IWAS4832ADEB150JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	3,509	-	RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	15µH	±5%	240mOhm	65 @ 200kHz	-	-	-	-40°C ~ 105°C
IWTX47R0DAEB6R3JF1 IWTX-47R0DA-F1 6.3 5% EB E2 Vishay Dale	2,588	-	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	40mOhm	190 @ 200kHz	7A	22A	-	-40°C ~ 105°C
IWAS4832AAEB220JF1 IWAS-4832AA-F1 22 5% EB E2 Vishay Dale	2,413	-	RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	22µH	±5%	427mOhm	38 @ 200kHz	-	-	-	-40°C ~ 105°C
IWAS3222CZEB190JF1 IWAS-3222CZ-F1 19 5% EB E2 Vishay Dale	2,299	-	RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	19.6µH	±5%	357mOhm	29 @ 200kHz	-	-	-	-40°C ~ 105°C

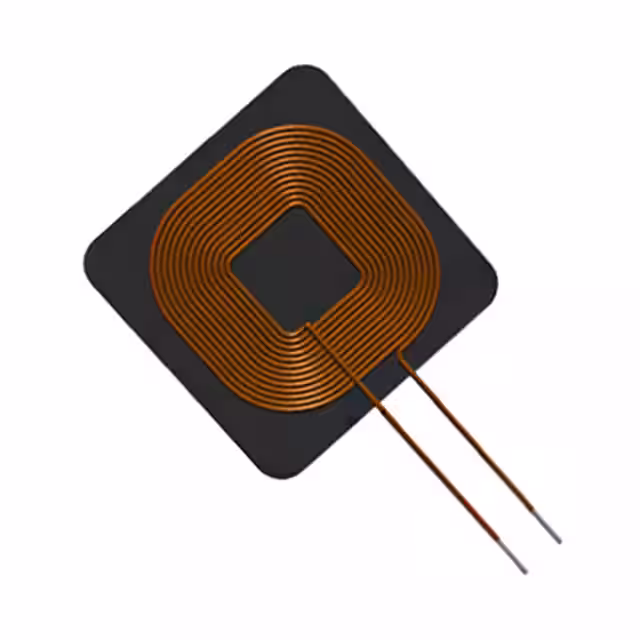

AWCCA-20R20H08-C01-B RECEIVER COIL, 12UH Abracon LLC	2,255	-	RFQ	Datasheet	Box	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	12µH	±10%	290mOhm	20 @ 100kHz	-	-	-	-25°C ~ 85°C

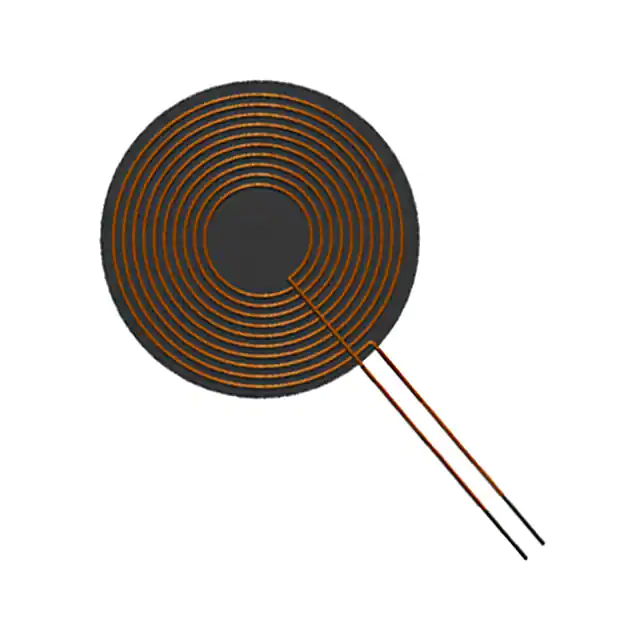

AWCCA-15N15H06-C01-B TX OR RX COIL, 1 COIL, 14.9UH Abracon LLC	2,381	-	RFQ	Datasheet	Box	AWCCA	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	14.9µH	±10%	1Ohm	8.5 @ 100kHz	-	-	-	-25°C ~ 85°C
AWCCA-20N20H20-C01-B TX OR RX COIL, 1 COIL 6.3UH Abracon LLC	3,138	-	RFQ	Datasheet	Box	AWCCA	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	150mOhm	34 @ 100kHz	-	-	-	-25°C ~ 85°C
AWCCA-50N50H35-C02-B RX TX 1 COIL 1 LAYER 6.3UH 10.6A Abracon LLC	2,546	-	RFQ	Datasheet	Box	AWCCA-50N50	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	72 @ 100kHz	10.6A	36A	6.4MHz	-25°C ~ 85°C

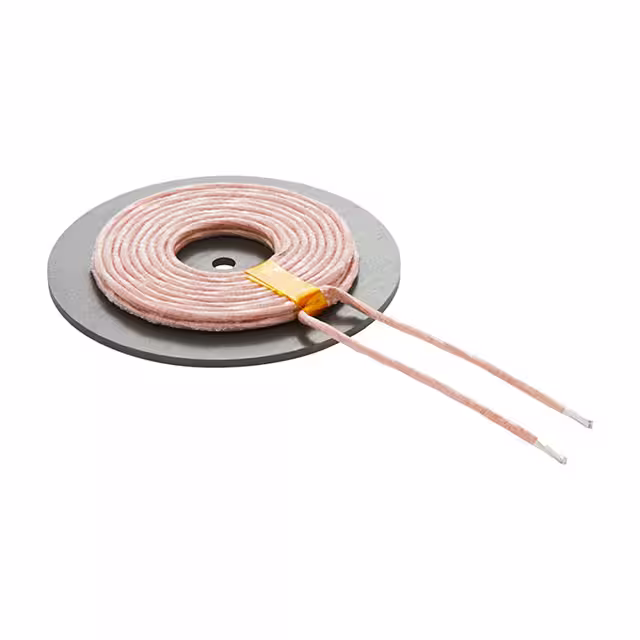

WTSC-10R0K-A3 SINGLE-COIL CIRCLE BASE WIRELESS Signal Transformer	3,317	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	75mOhm Max	-	4A	6A	-	-20°C ~ 85°C
AWCCA-50N50H40-C02-B RX TX 1 COIL 1 LAYER 6.3UH 11.1A Abracon LLC	2,947	-	RFQ	Datasheet	Box	AWCCA-50N50	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	72 @ 100kHz	11.1A	40A	5.7MHz	-25°C ~ 85°C
IWTX9955DEEB110KF3 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	2,786	-	RFQ	Datasheet	Tray	-	Active	Transmitter	3 Coil, 1 Layer	11.3µH, 11.3µH, 11.3µH	±10%	80mOhm Max	100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz	6.5A	-	-	-40°C ~ 125°C
AWCCA-TX523517-102 WIRELESS CHARGING COIL Abracon LLC	3,087	-	RFQ	Datasheet	Tray	AWCCA	Not For New Designs	Transmitter	1 Coil, 1 Layer	6.3µH	-	80mOhm	60 @ 100kHz	-	-	-	-40°C ~ 120°C

Total 263 Records«Prev 1... 5 6 7 8910 11 12...14 Next»
